Production fixtures
for the bonding of parts
For high-quality, tailor-made bonding fixtures, at LANGER you have come to the right place. We offer customers in all industrial sectors an all-round service package covering all aspects of fixture construction. Over the course of our company's 49-year history, we have constantly optimised our service portfolio and orientated it towards the most modern standards. Profit from our high quality and sustainability standards.
- Design, manufacture, assembly and measurement on our own DAkkS-calibrated measuring machines from a single source
- Customer-specific bonding fixtures in a wide range of sizes
- Global delivery
Bonding components precisely: LANGER at a glance
This is what distinguishes LANGER bonding fixtures

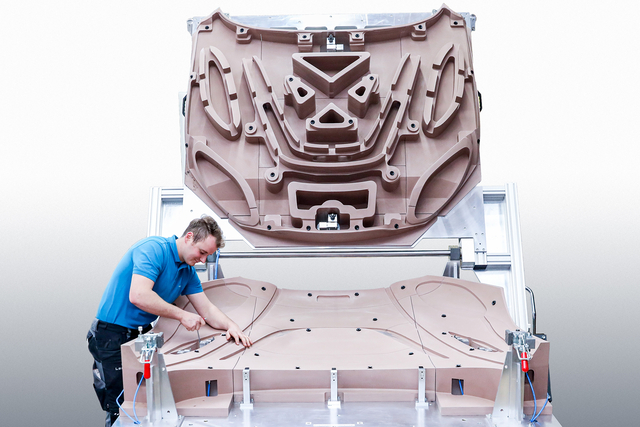

Bonding plays a key role in component manufacturing in many industries. In order to achieve clean results, the components to be bonded must be firmly and very precisely fixed in place for a long period of time. High-quality bonding fixtures from LANGER are the ideal choice to reliably hold parts with wide-ranging shapes and sizes in the desired position.
Our qualified staff work closely with you in order to produce solutions that really further your product. Thus, every bonding fixture that leaves our factory is precisely tailored to a single customer’s requirements. Upon request, our bonding fixtures are also suitable for the curing process in the tempering furnace and as simple measuring jigs for use with a coordinate measuring machine. If required, they can be directly heated using closed-loop or open-loop controlled hot plates or heating coils.
Our qualified staff work closely with you in order to produce solutions that really further your product. Thus, every bonding fixture that leaves our factory is precisely tailored to a single customer’s requirements. Upon request, our bonding fixtures are also suitable for the curing process in the tempering furnace and as simple measuring jigs for use with a coordinate measuring machine. If required, they can be directly heated using closed-loop or open-loop controlled hot plates or heating coils.
Send us a non-binding request now and we will advise you!
Sales manager for inspection device
and jigs
Dieter Stadler
+49 7558 930-611
Send E-Mail
Download VCard (.vcf)
and jigs
Dieter Stadler
+49 7558 930-611
Send E-Mail
Download VCard (.vcf)
Bonding fixtures: The best solution for your requirements
Due to the experience gained during 49 years in the project business, we know that customers very much appreciate it when all services during a project come from a single source. That is why we have employees and a machine park that cover a broad spectrum of tasks and offer all services from a single source. What you will also appreciate are our short decision-making paths and customer-oriented production control.
In this way, we achieve maximum customer orientation during the manufacture of bonding fixtures. This enables us to convince customers in the automotive, construction, medical technology, mechanical engineering and aerospace industries. In the process, the communication via EDI enables simple and flexible data exchange with our customers.
In this way, we achieve maximum customer orientation during the manufacture of bonding fixtures. This enables us to convince customers in the automotive, construction, medical technology, mechanical engineering and aerospace industries. In the process, the communication via EDI enables simple and flexible data exchange with our customers.
Guaranteed quality for your bonding fixtures
We cater precisely to your wishes during the design, development and manufacture of fixtures. Our fixtures correspond exactly to your specifications and are precisely tailored to your needs. By measuring every fixture on our DAkkS-calibrated measuring machines, we ensure that each and every one of our products meets the highest standards.
Also rely on LANGER’s experience and expertise in the following fields:
Plastic injection moulding
Tool/mould construction
Cubing model construction
Renewable energy
Plastic injection moulding
Tool/mould construction
Cubing model construction
Renewable energy
Responsible and sustainable: Manufacturing with a view to the environment
LANGER has always set great store by environmentally friendliness. All process steps involved in the manufacture of fixtures are thus sustainable and resource-conserving. The amount of waste material is systematically reduced to a minimum and, where possible, we rely on recycling. In addition, our products are delivered in reusable packaging.
Overview of certificates
| Part size | Up to 3,000 mm realised |
|---|---|
| Certificates | TISAX, VDA, IATF, ISO 9001 |
Production fixtures: Your project is in good hands at LANGER
✔ Pre-engineering
Already during the preparation of the quotation, we contribute our huge repertoire of know-how and experience to your project.
Already during the preparation of the quotation, we contribute our huge repertoire of know-how and experience to your project.
✔ Automation
Thanks to a high degree of automation, our manufacturing processes are quick and flexible.
Thanks to a high degree of automation, our manufacturing processes are quick and flexible.
✔ Quality control
Comprehensive inspections and measurements ensure that every product meets our strict quality standards.
Comprehensive inspections and measurements ensure that every product meets our strict quality standards.
✔ Global delivery
We offer certified quality "made in Germany” and that all around the world. We would also be happy to deliver our products to your country.
We offer certified quality "made in Germany” and that all around the world. We would also be happy to deliver our products to your country.
How is a project conducted at LANGER?
As a full-service partner, we are ready to support you during every step of your project. A single contact person will be assigned to you from the request to delivery.
Consultancy/pre-engineering
Our specialists contribute their skills to your order right from the start. Qualified staff from different departments work together to find the perfect solution to cater for your needs. In this way, you profit from our wealth of experience and know-how during every phase of your project.
Design and development
We would be happy to take on responsibility for the planning, further development or the complete design of your bonding fixtures. Provide us with a description of your production process, what you consider to be important and what specific factors need to be observed. If you already have a draft design, we would be happy to help with its further optimisation.
Production

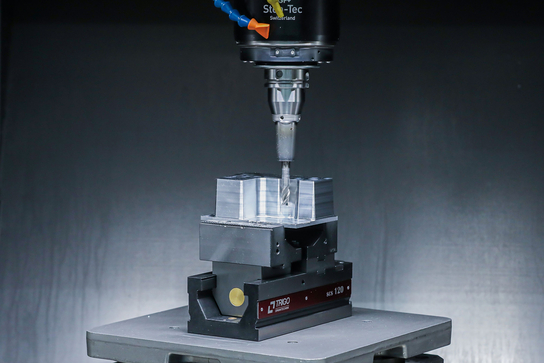

One of our core competencies is the economical manufacture of production fixtures. Your expectations with regard to the finished product are put into practice with absolute precision. We use state-of-the-art technology and equipment to achieve maximum efficiency and cost-effectiveness.
Quality control
During the design and manufacture of LANGER production fixtures, nothing is left to chance. After all, the key factors here are absolute precision and close tolerances. Our in-house quality control includes computer tomography, laser scanning, optical and tactile measurement, 3D measurement on milling centres, 3D coordinate measuring machines, bursting pressure tests, tightness tests, milling cutter measurement, spotting presses as well initial sample test reports. The evaluation is carried out using the software Polyworks. We create measurement reports according to the drawing or the measuring plan. It is also possible to compare the measurement data with the CAD data of the parts or the fixtures, tools and moulds. Meticulous measurement equipment management guarantees the reliability of all control processes.
Logistics service
We deliver all around the world and are familiar with the challenges that can arise with international shipments. For this reason, we offer our customers comprehensive storage and logistics solutions including customs clearance and a transport service. In the process, we pay attention to continuous article traceability. We would be happy to enter individual agreements with regard to the spare-parts supply for our customers.
Bonding fixtures “made in Germany”Full service for maximum customer satisfaction
LANGER offers you production fixtures with all-round service. We consider ourselves to be not only a service provider, we would also like to provide you with comprehensive support during your project. With our broad service portfolio that goes far beyond just fixture construction, we are ready to help you with every stage of your work. From the idea to the finished component and, if required, also part measurement, we are the ideal partner for every industry and every project.
Let us convince you, too, through our customer-oriented way of working. Close cooperation with our customers, transparency and on-time delivery are just a few examples of the qualities that distinguish us as a partner in the field of fixture construction. Our qualified employees welcome every new challenge and would be happy to also find the ideal solution for your project.
Let us convince you, too, through our customer-oriented way of working. Close cooperation with our customers, transparency and on-time delivery are just a few examples of the qualities that distinguish us as a partner in the field of fixture construction. Our qualified employees welcome every new challenge and would be happy to also find the ideal solution for your project.
